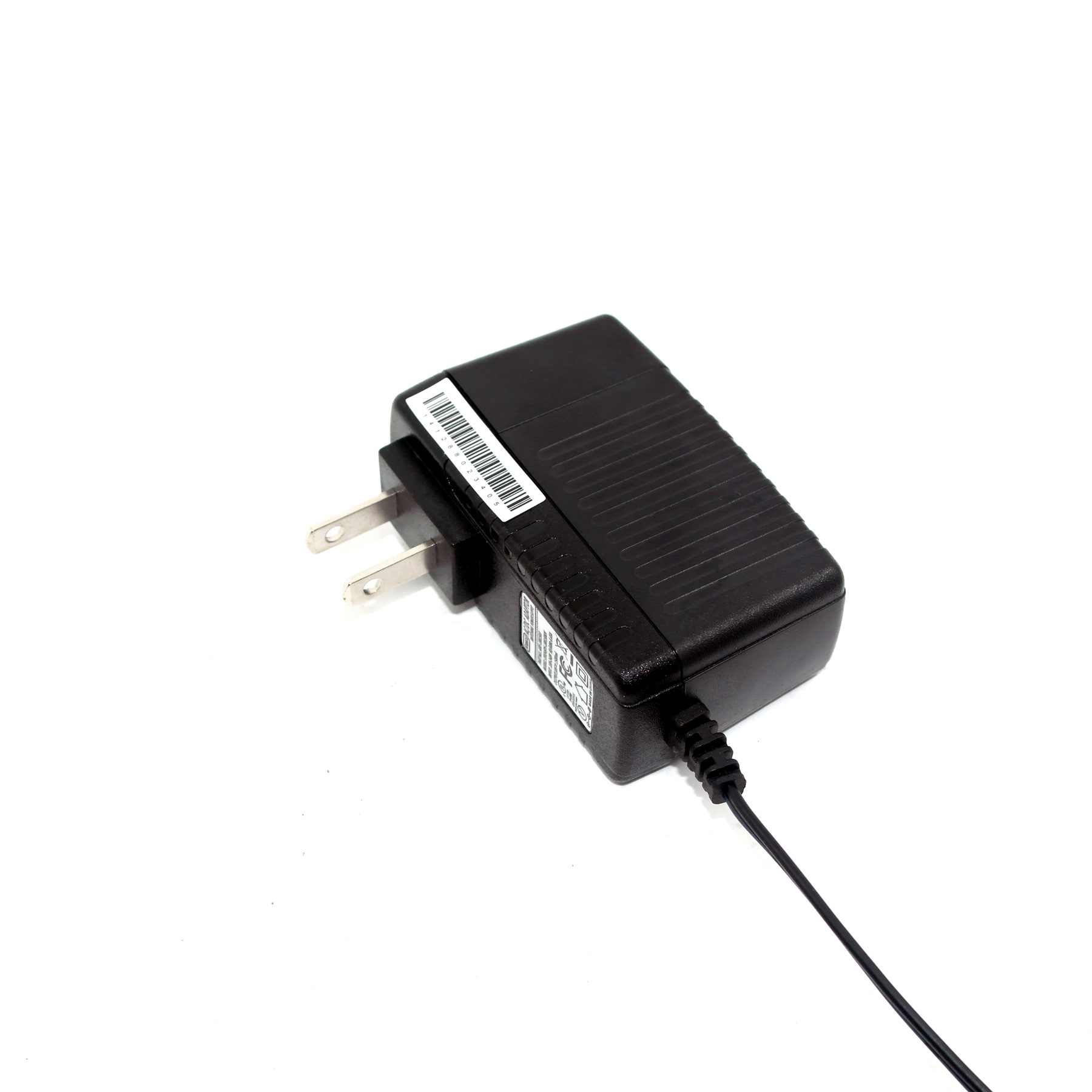

9VDC 500mA Power adaptor China
6watt series external wall-mount medical power adaptor
AC adaptor, AC/DC power adaptor China, Class II, universal input, custom design.
KRECO P/N: KRE-0900500
General: 6W series medical power adaptor adaptor
PCB type: FD145A and KF126 E677612 94V0
Transformer type:FDGP187A
Input voltage: 100 to 240V AC, 50 to 60Hz
input current: 150mA maximum
Inrush current (240V AC): 25A, cold 25°C
No load input power (240V AC): 0.3W
Efficiency: 75% maximum
DC output voltage: 9V DC 500mA
DC output current: 500mA
Output voltage precision: 5%
Ripple/noise: 100mV
Regulation: ±1% line, ±5% load
Dc connector : 2.1X5.5mm , 2.5X5.5mm , optional
High reliability
High efficiency: consumption, meet US Energy start/CEC/AS/MEPS/EUP/ERP
Light and convenient plug-in
LED indication
Burn-in: 100% full load, 40°C, 4hrs minimum
Leakage current: 0.25mA maximum at 264V AC
Withstanding voltage: 3kV 1minute 10mA max, between primary and secondary
MTBF: meet MIL-HDBK-217F over 50,000hrs, full load, 25°C
AC/DC power adapter protection:
Over-voltage
Over-current
Short-circuit
Thermal shutdown capability
FCC Part15 Class B
EN55022 Class B
AS/NZS3548, AS/NZS4251.1 class B
EN55024/A1:2001
IEC61000-4-2; IEC61000-4-3
IEC61000-4-4; IEC61000-4-5
IEC61000-4-6; IEC61000-4-11
GB9254-1998/GB17625.1-2003
CISPR22 Class B
CNS13438 Class B
EN62368
EN60950:2009; EN60065
PSE IEC60950, EN60065
AS/NZS 60950:2000, AS/NZS60065
CE(Low Voltage Directive)
UL1310, GB4943-2001
