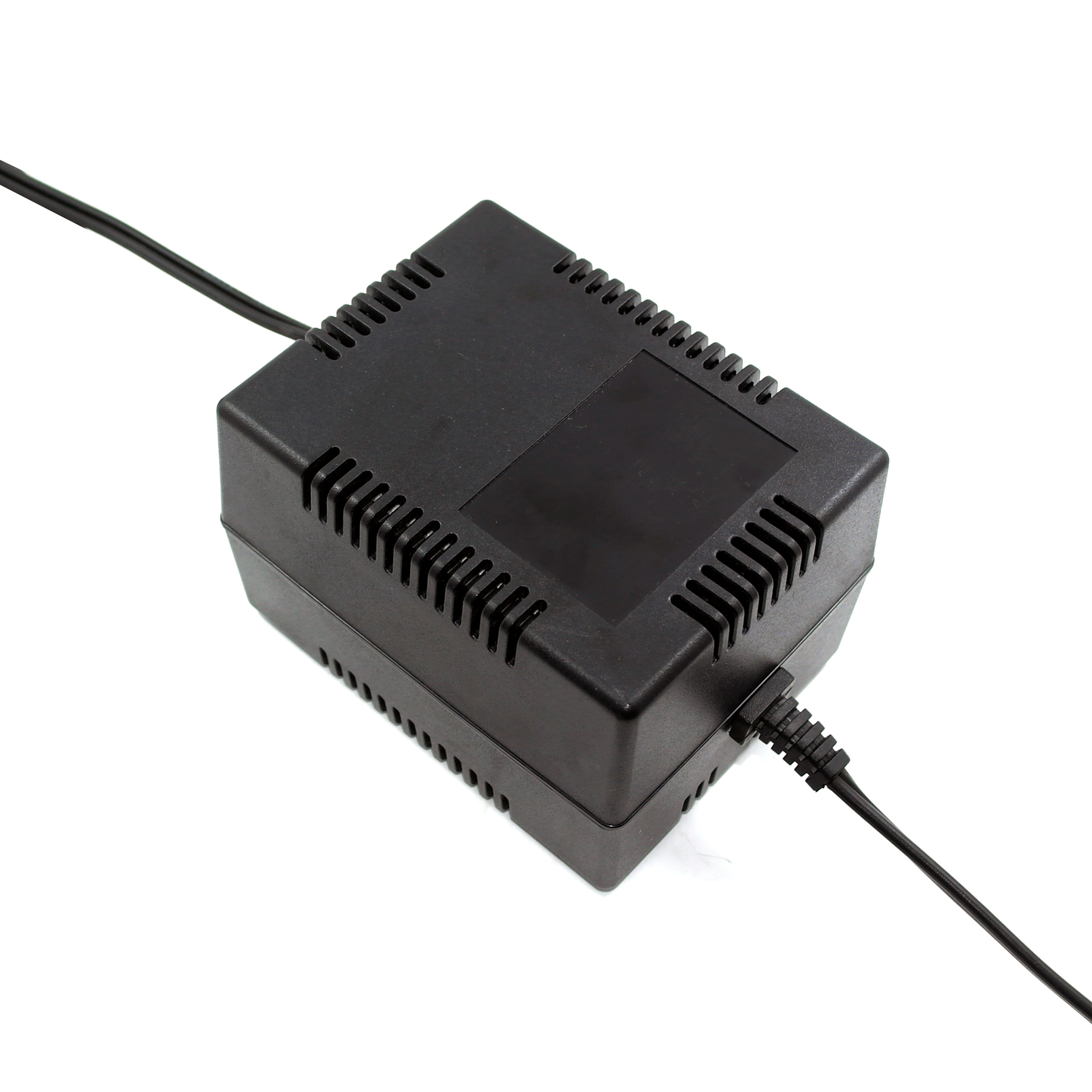

48W 24VDC 2A desktop type linear power supply,  24VDC 2A desktop type linear adaptor, Class II, IP20, Universal input, customized design.
P/N: KRE-LPD12
MODEL: KRE-2402000LD
Model Number:  KRE-XXXYYYZLD
"XXX"=030-480, The output voltage is DC3.0-48.0V,
"YYY"=001-999, The output current is 0.01-9.99A
"Z" representing the input plug, 0-European plug, 1-British plug, 2-the Australian plug, 3-USA plug, 4-Japan plug, 5-China plug, 6-Korea plug, 7-South Africa plug, 8-Brazil plug, 9-Argentina plug
"L"= Linear power supply
"D"= desktop type linear power supply

General: 48W series linear power adaptor for your collection




Low-temperature
High-reliability
Lightweight and convenient plug-in
With fuse, LED light indicator
Low working temperature and low ripple noise
High efficiency: consumption, meet US Energy start/CEC/AS/MEPS/EUP/ERP




CE (low-voltage Directive)
UL1310, GB4943-2001
EN61558-2-6
EN60950:2009; EN60065
PSE IEC60950, EN60065
AS/NZS 60950:2000, AS/NZS60065




Input voltage: 100-240VAC 50~60HZ
Input Frequency: 50 to 60Hz
input current: 350mA maximum
Rated input voltage and frequency:
100V AC 60Hz (Japan), 120V AC 50/60Hz (North America), 220V AC 50Hz (China, Korea),
230 to 240V AC 50/60Hz (Europe, Russia), 240V AC 50/60Hz (Australia, New Zealand),
127 or 220V AC (Brazil)
No load input power (240V AC): non-CEC
Input plug: EU/VDC (EU), the US (North America), PSE (Japan), SAA (Aust, NZ), BS (UK, HK),
Brazil, South Africa, CCC (China), EK (Korea) and more
Customized designs are accepted
Design time: 2 days (maximum)




Power: 48W
DC output voltage: from 3 to 24V (AC or DC) optional
DC output current: 30 to 2,000mA (maximum)
Output voltage precision: 5%
Ripple and noise: 100mV
Regulation: ±1% line, ±5% load
Wire length: 1.5 meters




Lightweight and convenient plug-in
High-reliability
With fuse, LED light indicator
Low-temperature
Low working temperature and low ripple noise
High efficiency: consumption, meet US Energy start/CEC/AS/MEPS/EUP/ERP




CCTVs, securities, antennas, fans, radios, videos, toys, aquariums, desk lamps, LED lamps and more




CISPR22 class B
CNS13438 class B
EN55024/A1:2001
IEC61000-4-2; IEC61000-4-3;
IEC61000-4-4; IEC61000-4-5;
IEC61000-4-6; IEC61000-4-11
GB9254-1998/GB17625.1-2003
EN55022 class B
FCC parts 15 class B
AS/NZS3548, AS/NZS4251.1 class B




Thermal cut-off capability
Short-circuit




Very low-ripple and noise, very good regulation, low-disturbance noise but more heavy, bigger size, than medical power adaptor




Individual white box
20 pieces per carton
Gross weight: 18kg (maximum)
PE bag
EI57 or EI66 type
Carton size: 470 x 350 x 240mm

NO.	Type	Shape	Shape	NO.	Type	Shape
1	UL Plug			2	UK Plug
3	GS Plug			4	Korea Plug
5	Australia Plug			6	Italy Plug
7	China Plug			8	Denmark Plug
9	Argentina Plug			10	Switzerland Plug
11	Brazil Plug			12	Israel Plug
13	Japan Plug			14	South Africa Plug
