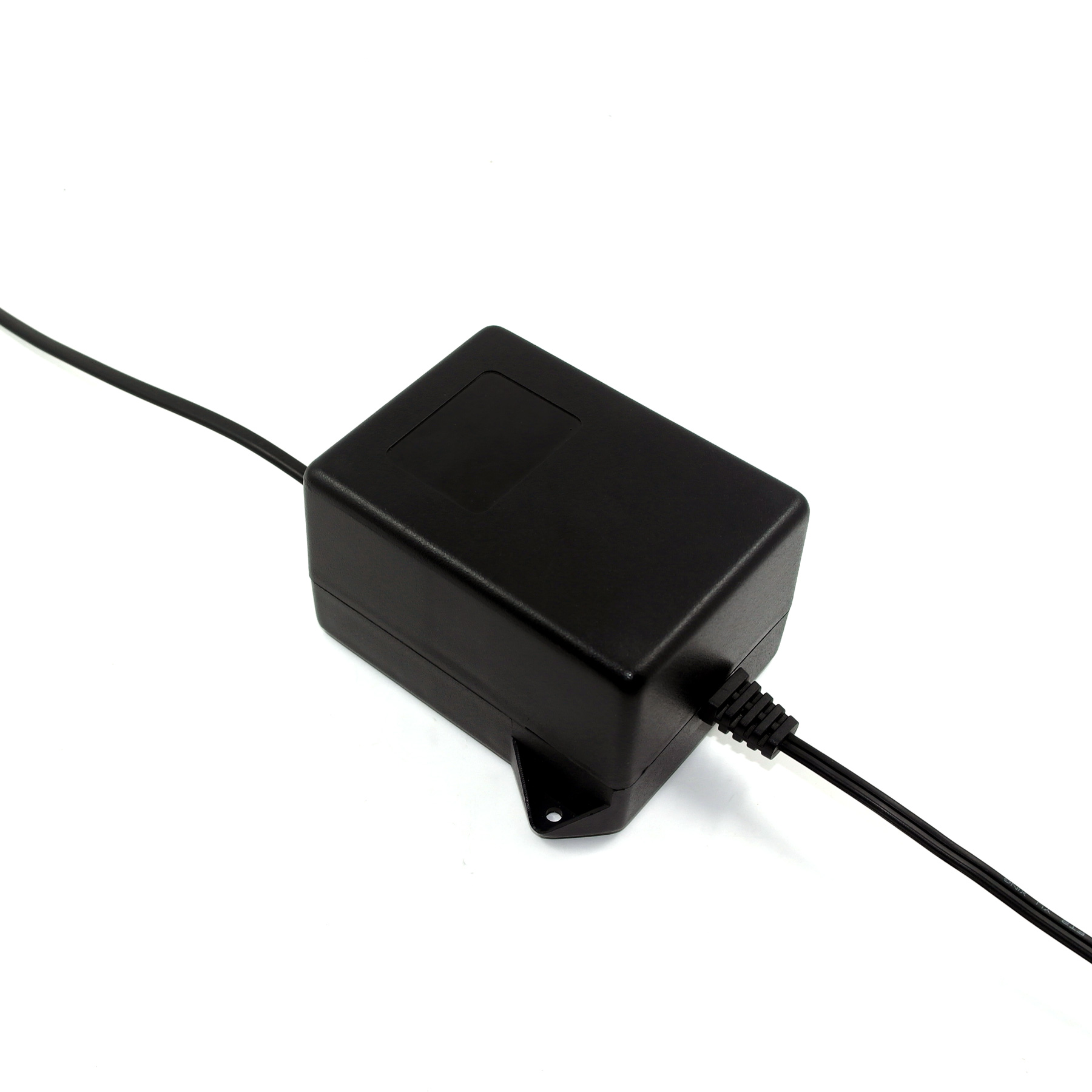

30VAC 1.2A AC/AC desktop type linear power supply, 30VAC 1.2A Linear adapter, Class IV, GEMS,SAA,EMC,ROHS, Universal input, customized design.
Category number: KRE-LPD08
Model number: KRE-3001202LD
Input: 100-240VAC 50~60HZ
Output: 30VAC 1.2A (unregulated)
Power: 36W




Customized designs are accepted
Design time: 2 days (maximum)
Rated input voltage and frequency:
100V AC 60Hz (Japan), 120V AC 50/60Hz (North America), 220V AC 50Hz (China, Korea),
230 to 240V AC 50/60Hz (Europe, Russia), 240V AC 50/60Hz (Australia, New Zealand),
127 or 220V AC (Brazil)
No load input power (240V AC): non-CEC
Input plug: EU/VDC (EU), the US (North America), PSE (Japan), SAA (Aust, NZ), BS (UK, HK),
Brazil, South Africa, CCC (China), EK (Korea) and more




DC output voltage: from 36V (AC) optional
DC output current: 1200mA (maximum)
Output voltage precision: 5%
Regulation: ±1% line, ±5% load
DC output cord dimensions: 2.1 x 5.5 x 12mm, normal
Wire length: 1.5 meters




High-reliability
High-efficiency
Light and convenient plug in
Low-temperature




Very low-ripple and noise, very good regulation, low-disturbance noise but more heavy, bigger size, than medical power adaptor




CCTVs, securities, antennas, fans, radios, audio, videos, toys, aquariums, desk lamps, LED lamps and more




Burn-in: 100% full load, 40ºC, 4 hours (minimum)
Leakage current: 0.25mA maximum at 264V AC
MTBF: meets MIL-HDBK-217F over 60K hours, full load, 25°C




Short-circuit
Thermal cut-off capability




FCC parts 15 class B
EN55022 class B
AS/NZS3548, AS/NZS4251.1 class B
EN55024/A1:2001
IEC61000-4-2; -3;-4;-5;-6; -11
GB9254-1998/GB17625.1-2003
CISPR22 class B
CNS13438 class B




EN61558-2-6
EN60950:2009; EN60065
PSE IEC60950, EN60065
AS/NZS 60950:2000, AS/NZS60065
CE (low-voltage Directive)
UL1310, GB4943-2001




Individual white box
PE bag
EI57 or EI66 type
Carton size: 430 x 280 x 250mm
20 pieces per carton
Gross weight: 18kg (maximum)

NO.	Type	Shape	Shape	NO.	Type	Shape
1	UL Plug			2	UK Plug
3	GS Plug			4	Korea Plug
5	Australia Plug			6	Italy Plug
7	China Plug			8	Denmark Plug
9	Argentina Plug			10	Switzerland Plug
11	Brazil Plug			12	Israel Plug
13	Japan Plug			14	South Africa Plug
