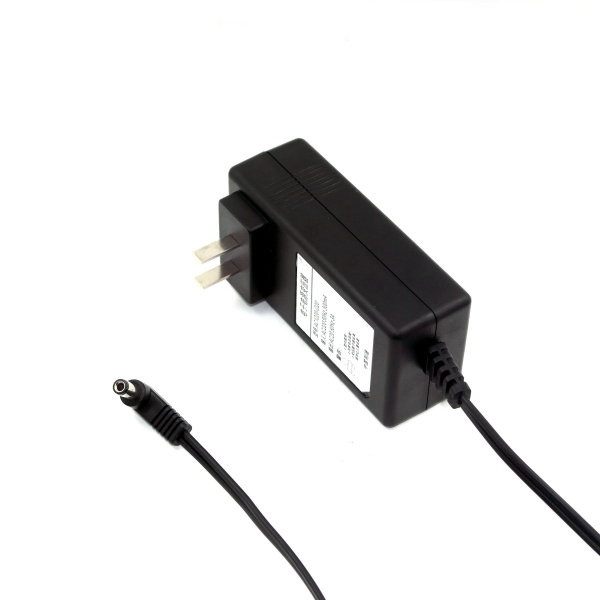

20VAC 2.5A  Electronic power transformer, 50W Electronic transformer, universal input, customized design
Category Number: KRE-TFBEI01
Model: KRE-200250T
Input: 230VAC 50HZ
Output: 20VAC 2.5A



IP20 rating
High-efficiency
High-reliability Light and convenient plug-in




Input:
Rated input voltage: 220 to 240V AC,
Input frequency range: 50Hz
No-load input power (240V AC): 0.25W (EI28 and EI35 can do CEC IV, CEC V)
Efficiency: CEC V, ErP II

Output:
AC output voltage: 20V AC  (optional)
AC output current: 2,500mA (maximum)
Output voltage precision: 5%
Ripple and noise: 100mV
Regulation: ±1% line, ±5% load




Leakage current: 0.25mA (maximum) at 264V AC
Burn-in: 100% full load, 40°C, 4 hours (minimum)
MTBF: meets MIL-HDBK-217F over 50,000 hours, full load, 25°C




Storage temperature: -20 to 65°C
Storage humidity: 10 to 95% RH
Operating temperature: 0 to 40°C
Operating humidity: 10 to 95% RH




Low-ripple and noise
Very nice regulation
Thermal cutoff capability
Large size than medical power adaptor
Low-disturbance noise but more heavy
Widely used for antenna, fans, radio, video, toy, aquarium, desk lamp and LED lamp




Individual white box
PE bag
Quantity: 120 pieces/carton
Gross weight: 17kg (maximum)
