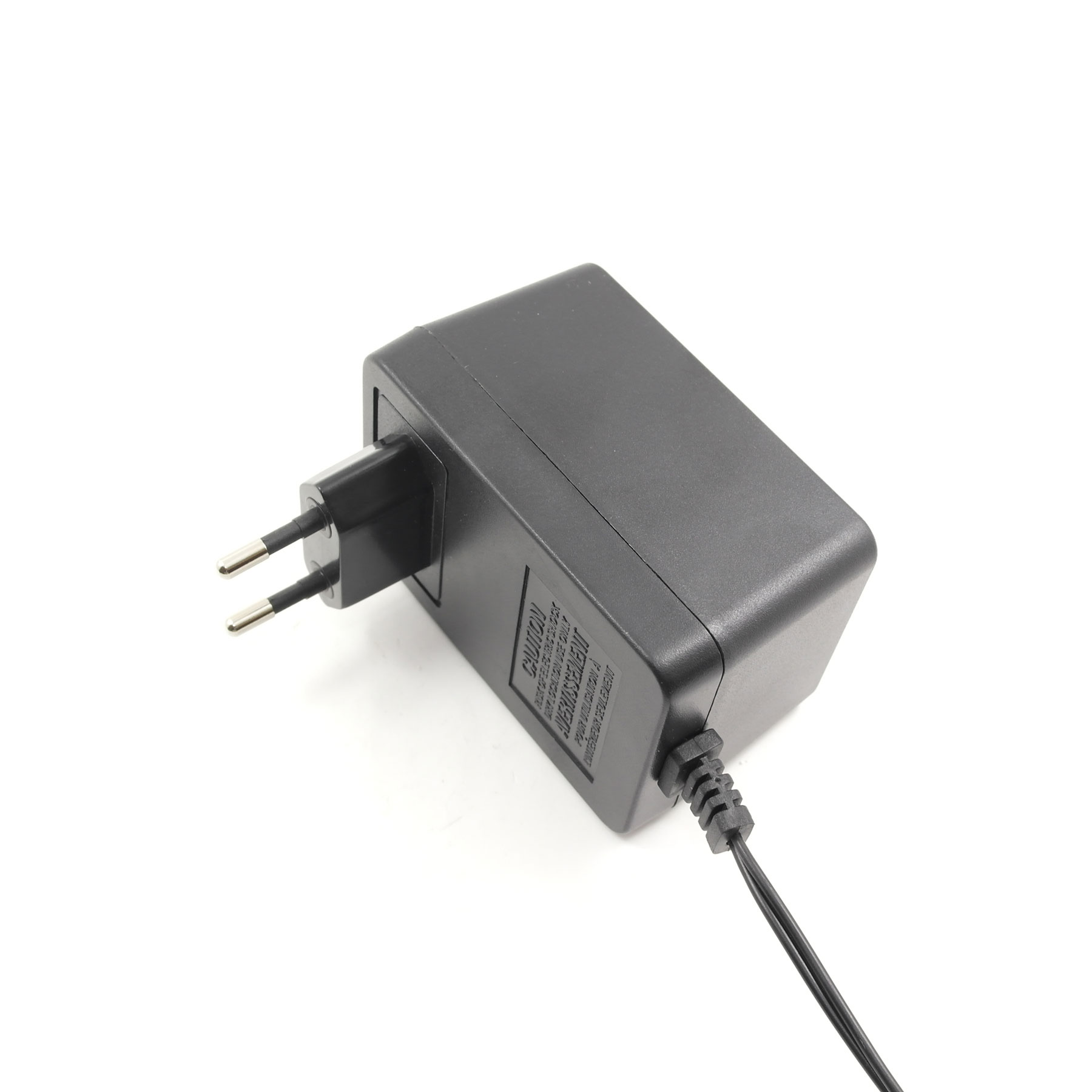

12VAC 1.6A wall-mount Linear Power adapter(Linear power supply) CE ROHS EMC certified, Class II,LPS, Energy-saving, IP20,Universal input, customized design. P/N: KRE-LPW02 Model: KRE-1201600L
General scope:
Very low-ripple and noise
Very good regulation, low-disturbance noise, but heavier, bigger size, than medical power adaptor
Used for antenna, fan, radio, video, toy, aquarium, desk lamp, LED lamp and more
IP20 rating
High-reliability
Low-temperature
High-efficiency: consumption, meets US Energy Star, CEC, AS, MEPS, EUP and ERP
Lightweight and convenient plug in
Burn-in: 100% full load, 40°C, 4 hours (minimum)
Leakage current: 0.25mA at 264V AC (maximum)
Input:
Rated voltage
Japan: 100V AC, 60Hz
North America: 120V AC at 50/60Hz
China and Korea: 220V AC at 50Hz
Europe and Russia: 230 to 240V AC at 50/60Hz
Australia and New Zealand: 240V AC at 50/60Hz
Brazil: 127 or 220V AC
No-load input power: 0.3W at 240V AC
Efficiency: CEC IV, ErP I
Input plug: EU/VDC (EU), US (North America), PSE (Japan), SAA (Australia, NZ), BS (UK, HK), Brazil, South Africa, CCC (China) and EK (Korea)
Output: DC output voltage: 3 to 24V AC (optional)
DC output current: 30 to 1,600mA (maximum)
Output voltage precision: 5%
Ripple and noise: 100mV
Regulation:±1% line, ±5% load
Wire length: 1.5m
FCC part 15 class B
CNS13438 class B
IEC61000-4-2, IEC61000-4-3
IEC61000-4-4, IEC61000-4-5
IEC61000-4-6, IEC61000-4-11
GB9254-1998/GB17625.1-2003
EN55022 class B
CISPR22 class B
AS/NZS3548, AS/NZS4251.1 class B
EN55024/A1:2001
Very low-ripple and noise
Larger size than medical power adaptor
Very nice regulation
Low-disturbance noise, but more heavy
Short-circuit
Thermal cutoff capability
Customized requirements are accepted
Used for antennas, fans, radios, video, toys,aquariums, desk lamps and LED lamps
CE (low-voltage directive)
UL1310, GB4943-2001
EN61558-2-6
AS/NZS 60950:2000, AS/NZS60065
PSE IEC60950, EN60065
EN60950:2009, EN60065
