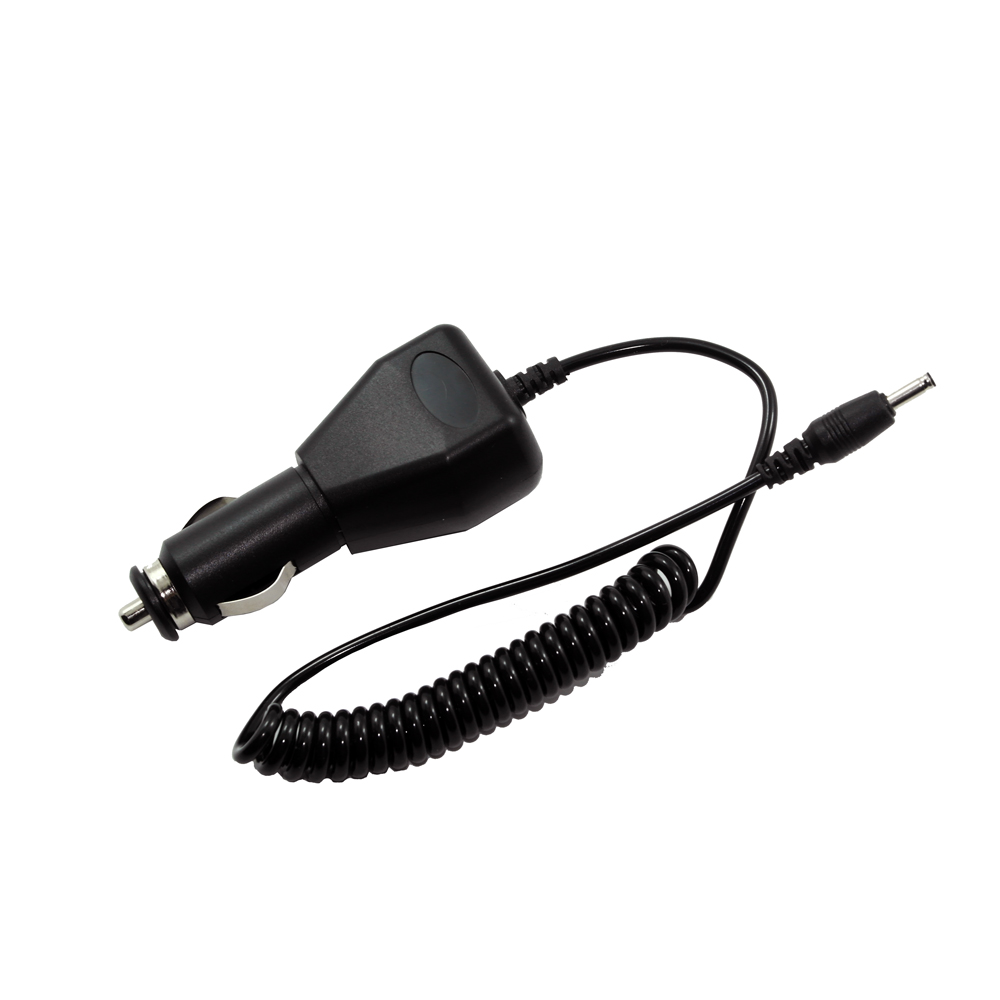

5.7V 0.8A series lithium battery In-car Charger,
P/N: KRE-CC21
model number: KRE-0570800C




Input voltage:12 - 24VDC
USB output voltage: DC 5.7V
Total USB output current: 800mA
Output voltage precision: 5%
Regulation: ±1% line, ±5% load
Ripple/noise: 100mV
Protecitons:short circuit
USB car charger for all smart phone, notebook, IPhone, Ipad, etc.
This Car charger with fuse, short circuit protection, LED light indicator




High reliability
High efficiency
low working temperature and low ripple noise
Light and convenient plug-in
LED indication
Compliant with CE standards and the RoHS Directive




EN55024/A1:2001
CISPR22 Class B
EN55022 Class B
CNS13438 Class B
AS per latest regulation or directive of IEC
IEC61000-4-2; IEC61000-4-3
IEC61000-4-4; IEC61000-4-5
IEC61000-4-6; IEC61000-4-11
GB9254-1998/GB17625.1-2003
FCC Part15 Class B
AS/NZS3548, AS/NZS4251.1 class B




Operating temperature: 0 to 40°C
Operating humidity: 10 to 95% RH
Storage temperature: -20 to 65°C
Storage humidity: 10 to 95% RH




CE, FCC, ROHS




CE (Low Voltage Directive)
PSE IEC60950, EN60065
UL1310, GB4943-2001
EN60950:2009; EN60065
AS/NZS 60950:2000, AS/NZS60065




Over-voltage protection
Over-current protection
Short-circuit protection
Thermal shutdown capability




1. soft-start current can reduce the AC input impact efficiency
2. With short-circuit and overload protection
3. EMI filter Minimum wave
4. Compact size and light weight
5. Car charger has wide input voltage range
6. Built-in IC chip, 100% full load burning test




Warranty: 2 years (limited)
Built-in IC chip, 100% full load burning test
Leakage current: 0.25mA maximum at 264V AC
Customized designs are accepted
Installed with EMI filter minimum wave
MTBF: meet MIL-HDBK-217F over 50,000hrs, full load, 25°C
