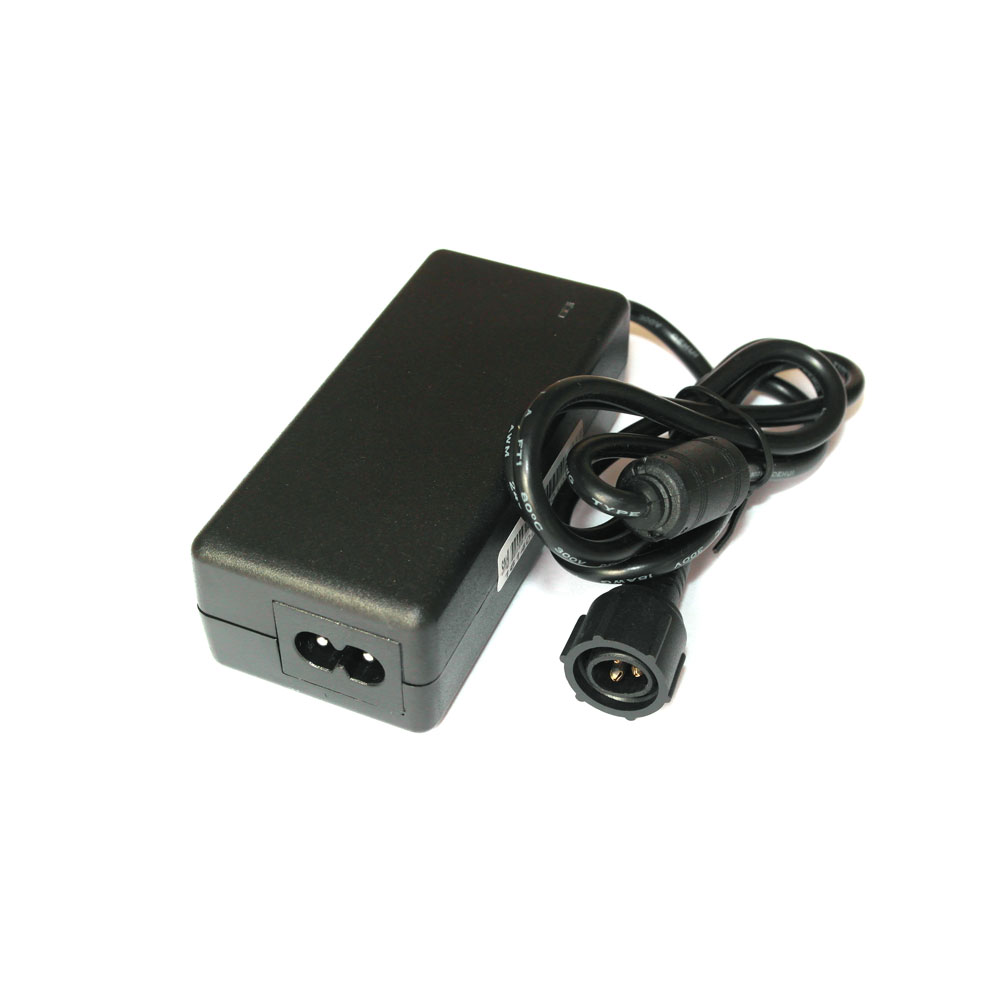

12V 1.5A Series desktop type medical power adaptor, switching power adapter, Class II, LPS, Universal input, customized design.
P/N: KRE-SAD
MODEL NUMBER: KRE-1201500D



Input voltages: 100 to 240V AC, 50/60Hz
input current: 0.8A maximum
No load input power (240V AC): 0.5
Inrush current (240V AC): 30A cold 25°C
Efficiency: 88% minimum
Power cords: EU/VDC (EU), US (North America), PSE (Japan), SAA (Aust/NZ), BS (UK/HK), Brazil, South Africa, CCC (China), EK (Korea) and more




Output Power: 18W
DC output voltages: 12V DC
DC output current: 1,500mA
Output voltage precision: 5%
Regulation: ±1% line, ±5% load
Ripple and noise: 100m




Leakage current: 0.25mA maximum at 264V AC
Withstanding voltage: (3kV 1 minute 10mA maximum, between primary and secondary)
Burn-in: 100% full load, 40°C, 4 hours minimum
MTBF: meet MIL-HDBK-217F over 50K hours, full load and 25°C




Customized designs are accepted
Design time: 5 working days maximu
Applications: printer, POS machine, consumer product, electronic product and more
General: 30W series medical power adaptor or switching power adapter for your collection




AS/NZS3548, AS/NZS4251.1 class B
EN55022 class B
GB9254-1998/GB17625.1-2003
IEC61000-4-11, IEC61000-4-6
IEC61000-4-5, IEC61000-4-4
IEC61000-4-3, IEC61000-4-2
EN55024/A1:2001
CISPR22 class B
CNS13438 class B
FCC part15 class B




With LED indicator
High reliability
Light and convenient plug in
High efficiency: consumption, meet US Energy start/CEC/AS/MEPS/EUP/ERP




Thermal shutdown capability (auto recovery)
Over-voltage protection (OVP)
Over-current protection (OCP)
Short-circuit protection (SCP)




UL, CUL, ETL, CETL, GS, CE, TUV, LVD, EMC, FCC, CCC, PSE, CB, C-tick, SAA, PCT, ROHS, PAHS and so on

NO.	Type	Shape	Shape	NO.	Type	Shape
1	UL Plug			2	UK Plug
3	GS Plug			4	Korea Plug
5	Australia Plug			6	Italy Plug
7	China Plug			8	Denmark Plug
9	Argentina Plug			10	Switzerland Plug
11	Brazil Plug			12	Israel Plug
13	Japan Plug			14	South Africa Plug
