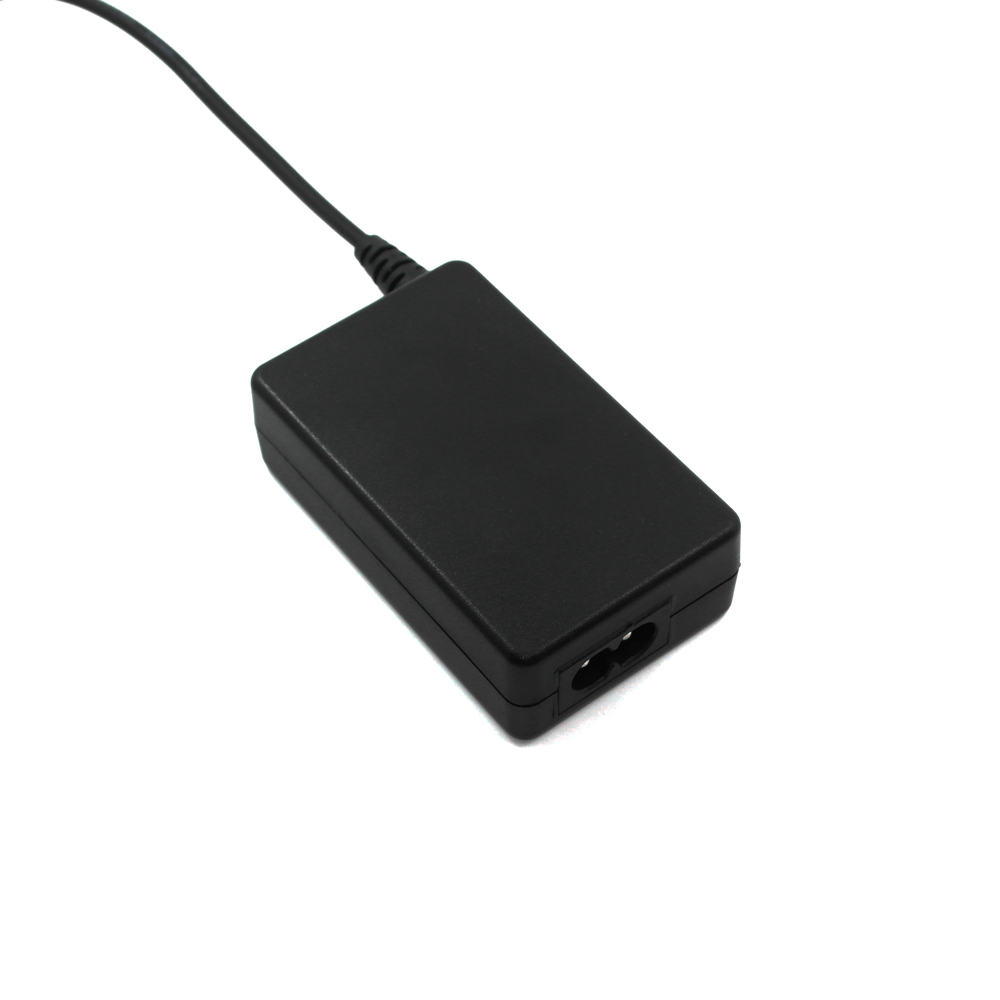

24V 520mA Series desktop type medical power adaptor, switching power adapter, Class II, Universal input, customized design.
C/N: KRE-SAD
P/N: KRE-2400520D




Input voltages: 100 to 240V AC
Input frequency range: 50/60Hz
input current: 4A maximum
No load input power (240V AC): 0.3W
Inrush current (240V AC): 30A cold 25°C
Efficiency: 88% minimum
Power cords: EU/VDC (EU), US (North America), PSE (Japan), SAA (Aust/NZ), BS (UK/HK), Brazil, South Africa, CCC (China), EK (Korea) and more




Power: 12.5W
DC output voltages: 24V DC
DC output current: 520mA
Output voltage precision: 5%
Ripple and noise: 100mV
Regulation: ±1% line, ±5% load
Efficiency level: VI
DC output cord AWG: 18AWG, normal
Wire length: 2.05m




Design time: 5 working days maximum
Customized designs are accepted
Applications: printer, POS machine, consumer product, electronic product and more
General: 36W series medical power adaptor or switching power adapter for your collection




High reliability
With fuse, LED light indicator
Low working temperature and low ripple noise
Lightweight and convenient plug-in
High efficiency: consumption, meet US Energy start/CEC/AS/MEPS/EUP/ERP




AS/NZS 60950:2000, AS/NZS60065
UL1310, GB4943-2001
PSE IEC60950, EN60065
CE(Low Voltage Directive)
EN60950:2009; EN60065
Compliant with the RoHS Directive
UL, CUL, ETL, CETL, GS, CE, TUV, LVD, EMC, FCC, CCC, PSE, CB, C-tick, SAA, PCT, ROHS, PAHS and so on




AS/NZS3548, AS/NZS4251.1 class B
CISPR22 class B
EN55022 class B
CNS13438 class B
FCC part15 class B
EN55024/A1:2001
IEC61000-4-2; IEC61000-4-3
IEC61000-4-4; IEC61000-4-5
IEC61000-4-6; IEC61000-4-11
GB9254-1998/GB17625.1-2003




MTBF: meet MIL-HDBK-217F over 50K hours, full load and 25°C
Withstanding voltage: (3kV 1 minute 10mA maximum, between primary and secondary)
Burn-in: 100% full load, 40°C, 4 hours minimum
Leakage current: 0.25mA maximum at 264V AC
Inrush current: 50A (maximum) at 240V (15A at 90V AC, 18A at115V AC, 31A at 230V AC, and 33A at 264V




Short-circuit protection (SCP)
Over-load protection (OLP)
Over-voltage protection (OVP)
Over-current protection (OCP)
Over temperature protection (OTP)
Thermal shutdown capability (auto recovery)




Storage temperature: -20 to 65°C
Storage humidity: 10 to 95% RH
Operating temperature: 0 to 40°C
Operating humidity: 10 to 95% RH
