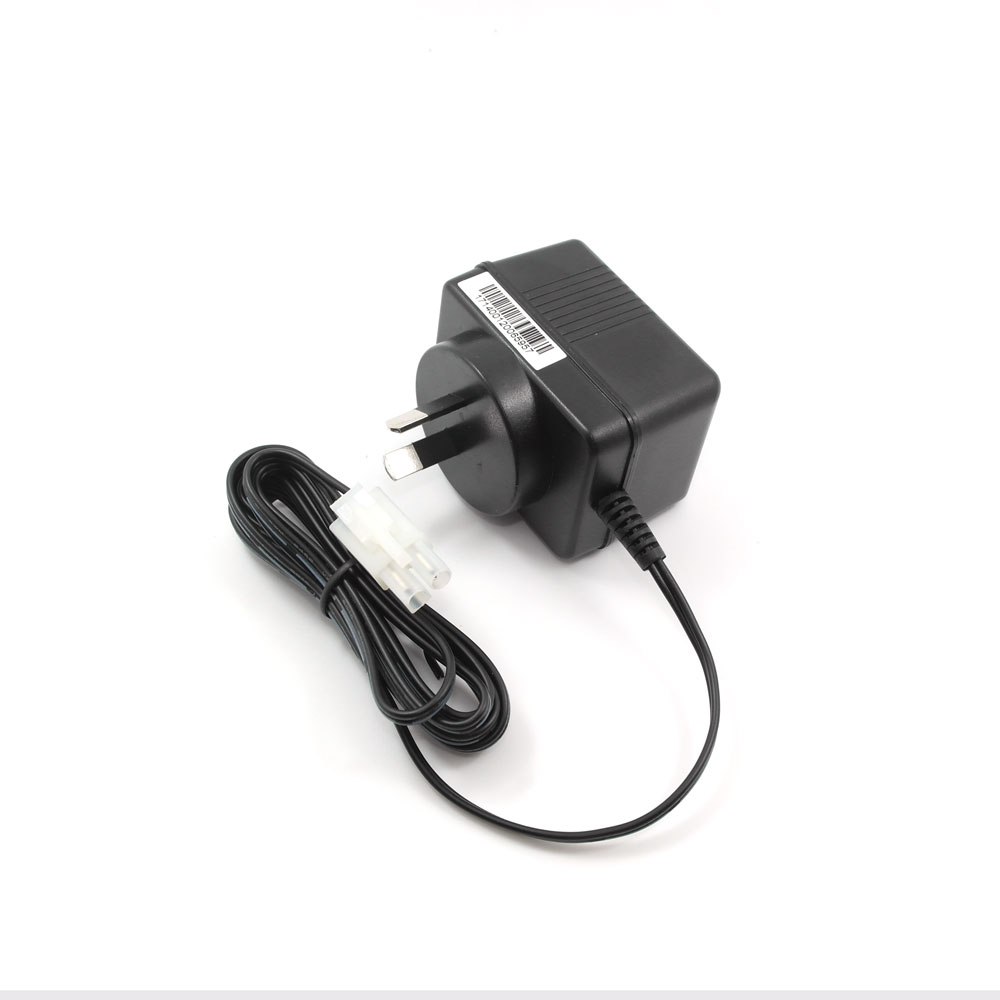

AV TV 12V 0.3A Linear Power Supply with F connector (Coaxial connector), Class II, IP20,Universal input, customized design. P/N: KRE-LPW
Input: 240VAC 50HZ Output: 12VDC 0.3A output connector: DIN
High-reliability
High-efficiency: consumption, meets US Energy Star, CEC, AS, MEPS, EUP and ERP
Lightweight and convenient plug in
Low-temperature
IP20 rating
Burn-in: 100% full load, 40°C, 4 hours (minimum)
Leakage current: 0.25mA at 264V AC (maximum)
MTBF: meets MIL-HDBK-217F over 60K hours, full load, 25°C
Thermal cutoff capability
Very low-ripple and noise
Very nice regulation
Low-disturbance noise, but more heavy
Larger size than medical power adaptor
Used for antennas, fans, radios, video, toys, aquariums, desk lamps and LED lamps
Customized requirements are accepted
FCC part 15 class B
EN55022 class B
AS/NZS3548, AS/NZS4251.1 class B
EN55024/A1:2001
IEC61000-4-2, IEC61000-4-3
IEC61000-4-4, IEC61000-4-5
IEC61000-4-6, IEC61000-4-11
GB9254-1998/GB17625.1-2003
CISPR22 class B
CNS13438 class B
EN61558-2-6
EN60950:2009, EN60065
PSE IEC60950, EN60065
AS/NZS 60950:2000, AS/NZS60065
CE (low-voltage directive)
UL1310, GB4943-2001
Input: Rated voltage
Japan: 100V AC, 60Hz
North America: 120V AC at 50/60Hz
China and Korea: 220V AC at 50Hz
Europe and Russia: 230 to 240V AC at 50/60Hz
Australia and New Zealand: 240V AC at 50/60Hz
Brazil: 127 or 220V AC
No-load input power: 0.3W at 240V AC
Efficiency: CEC IV, ErP I
Input plug: EU/VDC (EU), US (North America), PSE (Japan), SAA (Australia, NZ), BS (UK, HK), Brazil, South Africa, CCC (China) and EK (Korea)
Output: DC output voltage: 3 to 24V DC (optional)
DC output current: 30 to 1,600mA (maximum)
Output voltage precision: 5%
Ripple and noise: 100mV
Regulation: ±1% line, ±5% load
