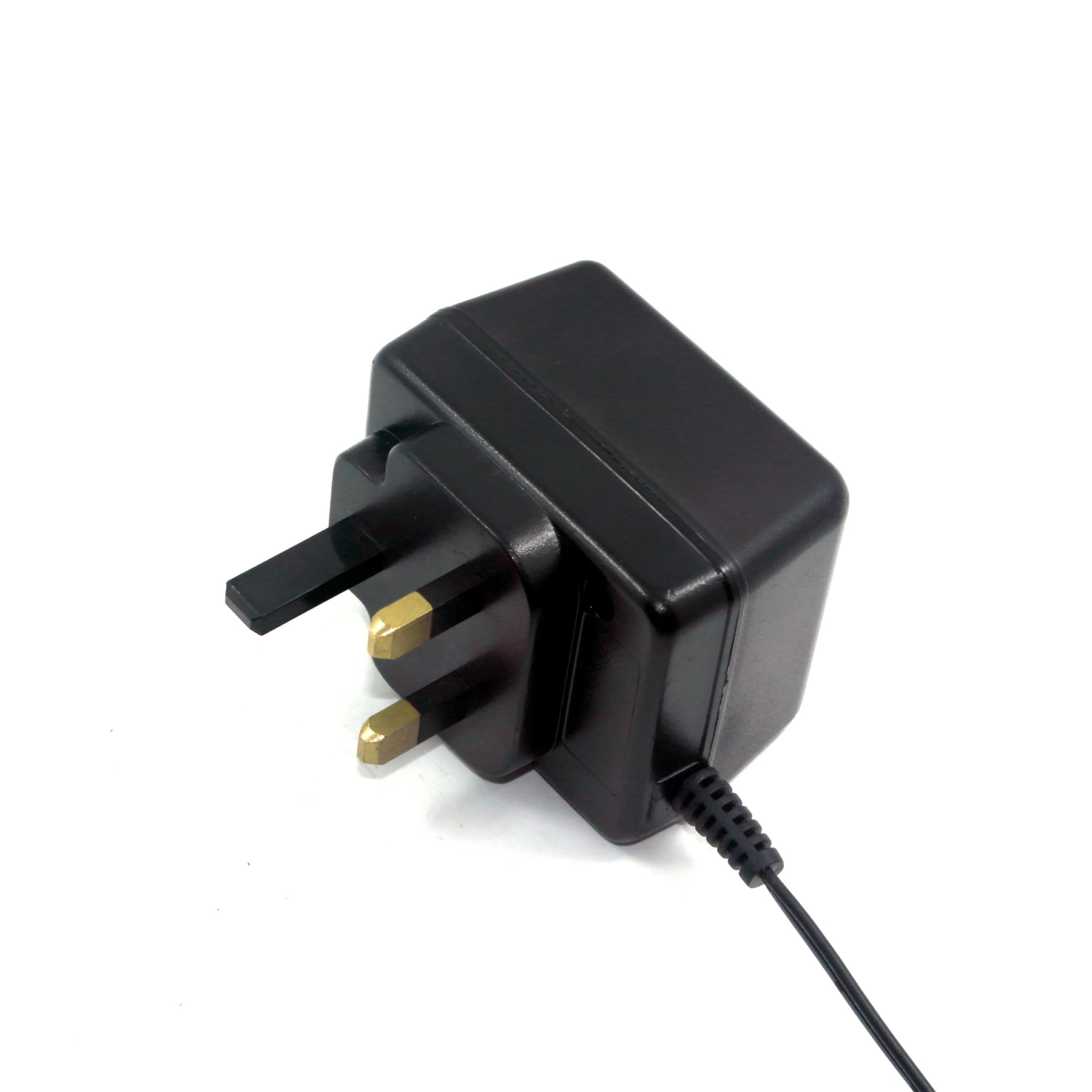

24VAC 0.35A wall-mount Linear Power adapter. Linear power supply,  CE ROHS EMC certified, Class II, Energy-saving, IP20, Universal input, customized design.
P/N: KRE-LPW
Model: KRE-2400351L




Input voltage: 100-240VAC
Input frequency range: 50 and 60Hz
Input current: 40mA maximum
No-load input power: 0.3W at 240V AC
Efficiency: CEC IV, ErP I
Input plug: EU/VDC (EU), US (North America), PSE (Japan), SAA (Australia, NZ), BS (UK, HK), Brazil, South Africa, CCC (China) and EK (Korea)




Output voltage: 3 to 24V AC (optional)
Output current: 30 to 100mA (maximum)
Output voltage precision: 5%
Ripple and noise: 100mV
Regulation:±1% line, ±5% load
Wire length: 1.8m




Power: 8.4W
Input valtage: 230VAC 50HZ
Input current: 40mA
Output valtage: 24VAC
Output current: 350mA

General scope:
Very low-ripple and noise
Very good regulation, low-disturbance noise, but heavier, bigger size, than medical power adaptor
Used for antenna, fan, radio, video, toy, aquarium, desk lamp, LED lamp and more




Burn-in: 100% full load, 40°C, 4 hours (minimum)
Leakage current: 0.25mA at 264V AC (maximum)
Withstanding voltage: 3kV 1minute 10mA max, between primary and secondary
MTBF: meet MIL-HDBK-217F over 50,000hrs, full load, 25°C




CE (low-voltage directive)
UL1310, GB4943-2001
EN61558-2-6
PSE IEC60950, EN60065
EN60950:2009, EN60065
AS/NZS 60950:2000, AS/NZS60065




Lightweight and convenient plug in
IP20 rating
High-reliability
Low-temperature
High-efficiency: consumption, meets US Energy Star, CEC, AS, MEPS, EUP and ERP




AS/NZS3548, AS/NZS4251.1 class B
FCC part 15 class B
CNS13438 class B
CISPR22 class B
EN55022 class B
EN55024/A1:2001
IEC61000-4-2, IEC61000-4-3
IEC61000-4-4, IEC61000-4-5
IEC61000-4-6, IEC61000-4-11
GB9254-1998/GB17625.1-2003




Very nice regulation
Low-disturbance noise, but more heavy
Very low-ripple and noise
Thermal cutoff capability
Customized requirements are accepted
Larger size than medical power adaptor
Used for antennas, fans, radios, video, toys, aquariums, desk lamps and LED lamps
