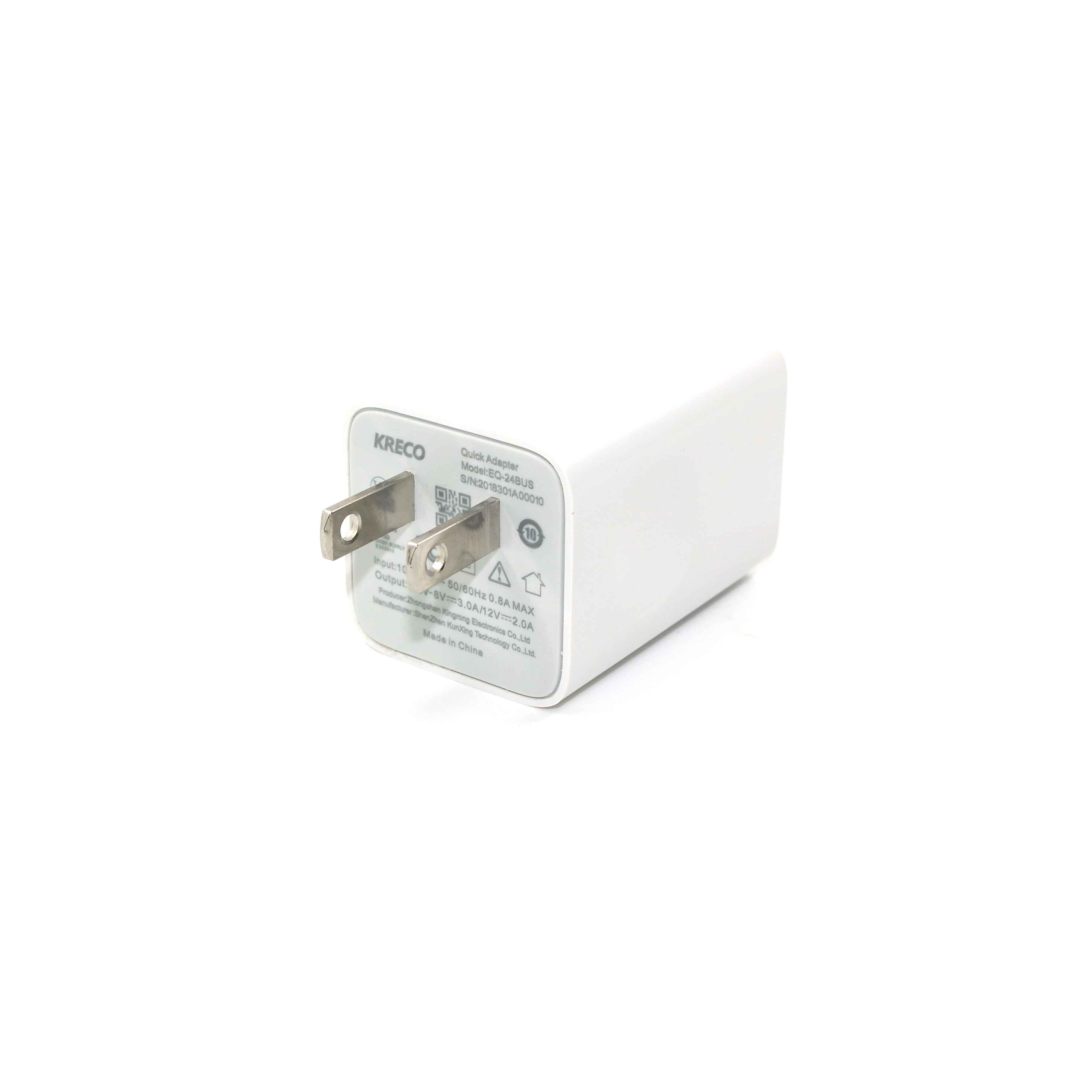

QC3.0 fast charger with one USB port, Output voltage could be adjusted automatically（3.6-8V-3A ,12V-2A） depended on your charging decvices
High Quality Competitive Price
High efficiency
High reliability
With fuse, short-circuit protection
Environmently friendly, energy-saving, complying with the safe certification standard
Light and portable ,convenient to carry , easy to use
Double insulated circuit board designed to protect your valuable gadgets from short circuits
White, Appearance elegant,
Input voltage: 100 to 240V AC 50/60Hz
Input current: 800mA maximum
No load input power: 0.5W (240V AC)
Inrush current: 25A cold, 25°C (240V AC)
Efficiency: minimum 60 to maximum 80%
Output power: 18W
Output voltage: 3.6-12V DC
Total USB output current: 3000mA max.
Single port: 3,000mA, 1,500mA, 1,000mA,
DC output: USB port
Ripple and noise: 120mV
Output voltage precision: 5%
Regulation: ±1% line and ±5% load
Leakage current: maximum 0.25mA at 264V AC
1.Suitable for almost all iPhone/ipod/mobile/tablet/camera/MP3/MP4 and other devices with 5V USB input.
2.USB port 5V 1A is for iPhone, mobile phones and other equipments.
3.USB port 5V 2A is for devices with higher demand of charging currency. Of course, you can use it to charge iphones, mobile phones or other digitals.
4.With built-in protection IC, it can provide high efficient charge. The fire-proof charger housing will give you a safe protection.
5.With voltage protection inside, in will not damage your device in case of high voltage. Our short circuit and leakage design will avoid your loss and give you a good protection.
6.The constant 5V output voltage will give you a full charge with 500mah USB charge port for mobile phone, MP3, MP4 and other devices. It will meet your other smart phones or digitals even higher requirement of charging currency from 2A to 3A
Leakage current: 0.25mA maximum at 264V AC
Burn-in: 100% full load, 40°C, 4 hours minimum
MTBF: meets MIL-HDBK-217F over 50,000 hours, full load, 25°C
Withstanding voltage: (3kV 1 minute 10mA maximum, between primary and secondary)
Thermal shutdown capability (auto recovery)
Over voltage protection (OVP)
Over current protection OCP)
Short-circuit protection (SCP)
PSE IEC 60950 and EN 60065
EN 60950:2009 and EN 60065
CE (low voltage directive)
UL 1310 and GB 4943-2001
AS/NZS 60950:2000 and AS/NZS 60065
AS/NZS 3548 and AS/NZS 4251.1 class B
EN55022 class B
CISPR22 class B
GB 9254-1998 or GB 17625.1-2003
CNS13438 class B
FCC part 15 class B
IEC 61000-4-11, IEC 61000-4-6
IEC 61000-4-5, IEC 61000-4-4
IEC 61000-4-3, IEC 61000-4-2
EN 55024/A1:2001
