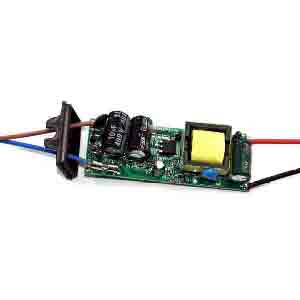

16.4W open frame type medical power adaptor, 16.4W open frame type switching power adapter, ITE, CLASS B, LPS Chinese power adaptor manufacturer Model: KRE-4680035D
General: 24-46.8VDC 350mA series open frame type switching power adapter
Power:16.4W
Input:AC 100-260V 50/60Hz
Output voltage:24-46.8V DC
Output current:350mA
Input:
Input voltage: 100 to 260V AC, 50 to 60Hz
Inrush current (240V AC): 25A, cold 25°C
Efficiency:80% maximum
Output:
DC output voltage: 24-46.8V DC
DC output current: 0.35A
Regulation: ±1% line, ±5% load
Output voltage precision: 5%
Product Electric Parameters
2 years warranty
10 years of industry experience
3 to 360 watts for your customized requirment
According with GB4943, UL60950-1,EN60950-1 standards.
E M C standards
According with GB9254, EN55022 class A EN61347-2-13:2008 standards
Safety standards: RoHS, CE, UL acceptable
CE(Low Voltage Directive)
UL1310, GB4943-2001
AS/NZS 60950:2000, AS/NZS60065
EN60950:2009; EN60065
PSE IEC60950, EN60065
Isolation Distance:
input and output interval, input and enclosure, output and enclosure 2,000V AC/3S
Working temperature and humidity: -10 to +60 degrees Celsius, 20 to 90% RH
Store temperature and humidity: -20 to +85 degrees Celsius, 10 to 95 %RH
With RoHS, CE, UL marks
100% full load burn-in test
Protections:
short circuit
overload
over-temperature
Withstand voltage:
Input and output interval: 2.0kVAC
Input and enclosure: 2.0kVAC
Output and enclosure: 500V AC
height above sea level
Leq 2000M
working temperature
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
Storage temperature
- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
cooling method:
Natural cooling air convection
105% - 150% rated power, automatic recovery
105% - 150% of the rated voltage
Overload protection
Over-voltage protection
Short circuit protection(SCP)
