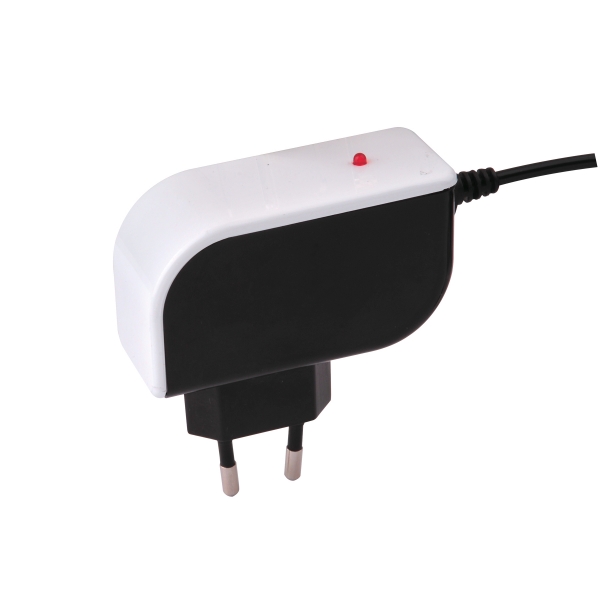

5VDC 4,800mA external wall-mount series travel charger, Li-ion charger, charger for electronic device, Class II, energy save, light to carry
MODEL number: KRE-0504800
P/N: KRE-TC81









Burn-in: 100% full load, 40°C, 4 hours minimum
MTBF: meets MIL-HDBK-217F over 50,000 hours, full load, 25°C
Leakage current: 0.25mA maximum at 264V AC




Power: 24W
Input: 100-240V-50/60Hz
Output: 5VDC-4,800mA

No load input power: 0.3W (240V AC)
Input voltage: 100 to 240V AC
Output voltage: 5VDC typical
Input current: 300mA maximum
Inrush current: 25A cold, 25°C (240V AC)
Output current: 4,800mA maximu
Frequency: 50 or 60Hz
Leakage current: maximum 0.25mA at 264V AC
Efficiency: minimum 70 to maximum 90%
Output voltage precision: 5%
Regulation: ±1% line and ±5% load
Ripple and noise: 100mV
DC output cord AWG: With cable




EN55022 class B
FCC part 15 class B
CNS13438 class B
AS/NZS 3548 and AS/NZS 4251.1 class B
EN 55024/A1:2001
CISPR22 class B
IEC 61000-4-2/3/-4/-5/-6/-11
GB 9254-1998 or GB 17625.1-2003




Over temperature protection (OTP)
Thermal shutdown capability(Auto recovery)
Over-current protection(OCP)
Over-voltage protection(OVP)
Short circuit protection(SCP)
Suitable for mini/micro USB, iPhone or Samsung Galaxy Tab




Operating humidity: 10 to 95%
Storage humidity: 10 to 95%
Operating temperature: 0 to 40°C
Storage temperature: -20 to 65°C




High reliability
High efficiency
low working temperature and low ripple noise
Lightweight and convenient plug-in
LED indication
With fuse, short-circuit protection and LED light indicator




EN 60950:2009 and EN 60065
PSE IEC 60950 and EN 60065
AS/NZS 60950:2000 and AS/NZS 60065
CE (low voltage directive)
UL 1310 and GB 4943-2001




Individual white box and PE bag
Quantity: 100 pieces/carton
Carton size: 390x270x420mm
Gross weight: 9kg maximum
Each part of this series can be sold separately: KRE-0501000, KRE-0502100 and KRE-0503100
