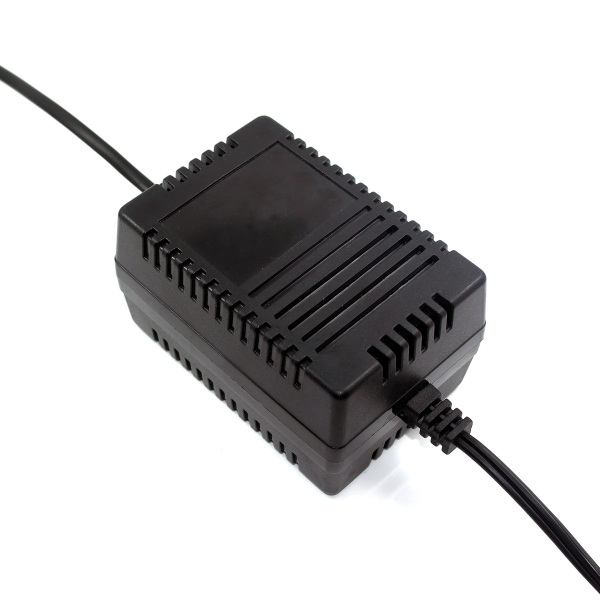

12VDC 1.5A series desktop type linear power supply, 12VDC 1.5A desktop type linear adaptor, Class II, Energy-saving, IP20, Universal input, customized design.
P/N: KRE-LPD08
MODEL: KRE-1201503LD




Input voltage: 220-240VAC 50~60HZ 0.2A
Output current: 12V DC 1500mA
Power: 18W

Input:
Rated input voltage and frequency:
100V AC 60Hz (Japan), 120V AC 50/60Hz (North America), 220V AC 50Hz (China, Korea),
230 to 240V AC 50/60Hz (Europe, Russia), 240V AC 50/60Hz (Australia, New Zealand),
127 or 220V AC (Brazil)
No load input power (240V AC): non-CEC
Input plug: EU/VDC (EU), the US (North America), PSE (Japan), SAA (Aust, NZ), BS (UK, HK),
Brazil, South Africa, CCC (China), EK (Korea) and more
Customized designs are accepted
Design time: 2 days (maximum)

Output:
DC output voltage: from 0 to 12V (AC or DC) optional
DC output current: 0 to 1,500mA (maximum)
Output voltage precision: 5%
Ripple and noise: 100mV
Regulation: ±1% line, ±5% load
Wire length: 1.5 meters




Burn-in: 100% full load, 40°C, 4 hours (minimum)
Leakage current: 0.25mA maximum at 264V AC
MTBF: meets MIL-HDBK-217F over 60K hours, full load, 25°C




Low-temperature
High-reliability
Light and convenient plug in
High-efficiency




GB9254-1998/GB17625.1-2003
IEC61000-4-11;-6;-5;-4; -3; -2
EN55024/A1:2001
CISPR22 class B
CNS13438 class B
EN55022 class B
FCC parts 15 class B
AS/NZS3548, AS/NZS4251.1 class B




General: 18W series linear power adaptor for your collection
Very low-ripple and noise, very good regulation, low-disturbance noise but more heavy, bigger size, than medical power adaptor




CCTVs, securities, antennas, fans, radios, videos, toys, aquariums, desk lamps, LED lamps and more




UL1310, GB4943-2001
CE (low-voltage Directive)
EN61558-2-6
EN60950:2009; EN60065
PSE IEC60950, EN60065
AS/NZS 60950:2000, AS/NZS60065




Short-circuit
Thermal cut-off capability




PE bag
Individual white box
20 pieces per carton
Gross weight: 18kg (maximum)

NO.	Type	Shape	Shape	NO.	Type	Shape
1	UL Plug			2	UK Plug
3	GS Plug			4	Korea Plug
5	Australia Plug			6	Italy Plug
7	China Plug			8	Denmark Plug
9	Argentina Plug			10	Switzerland Plug
11	Brazil Plug			12	Israel Plug
13	Japan Plug			14	South Africa Plug
