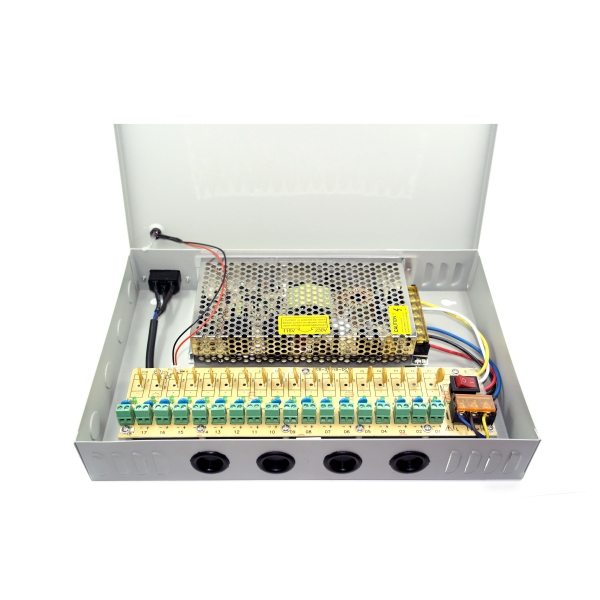

180W 12VDC CCTV Power supply, 18 output switch mode CCTV power supply, ITE, CLASS B,
P/N: KRE-SPN23
Model Number: KRE-1201500P





Input voltage
Input Voltage: AC100~120V
                     AC220-240V
Input frequency
50-60Hz
Input surge
20A@120VAC
40A@230VAC




Output Power: 180W
Output voltage: 12V DC
Output current: 15A

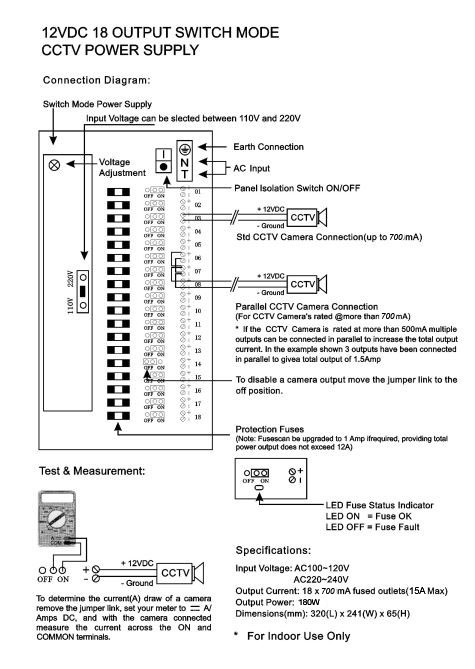

Output Current Marking: 18*700mA fused outlets (15AMax)
(Actual 18* 625mA fused outlets at 16VDC, customer requirement)
Output voltage can be adjusted: ±10%
Voltage regulation
(Full load) leq 0.5%
Start-up time:
Leq 1S(input230V,Io=100%)
keep time:
More than or equal to 20mS (input230V,Io=100%)




Input---output
1500VAC/1min
Input---ground
1500VAC/1min
Input---ground
500VAC/1min




2 years warranty
10 years of industry experience
Product Electric Parameters
3 to 360 watts for your customized requirmen
Average working no trouble ＞50,000 hours




Safety standards:
According with GB4943, UL60950-1,EN60950-1 standards.
E M C standards
According with GB9254, EN55022 class A EN61347-2-13:2008 standards




Over-voltage protection
105% - 150% of the rated voltage
Overload protection
105% - 150% rated power, automatic recovery
Thermal shutdown capability




height above sea level
Leq 2000M
Natural cooling air convection
working temperature
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
Storage temperature
- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)




100% load test
Built-in EMI filter
Full range of input voltage
output voltage accurate and stable
Output over-voltage, over-current and short-circuit protection
Output low ripple and noise




Individaul box/pc
