                      • LOCATION : HOME >> POWERS >> Transformer >> EI transformer >>
                      General Spec of EI transformers ▼
                        product:General Spec of EI transformers
                          KRECO P/N：General Spec
                          DOWNLOAD / EMAIL NOW
                          Request a Quote: sales@kreco.com.cn
                      kreco email address
                    Details：

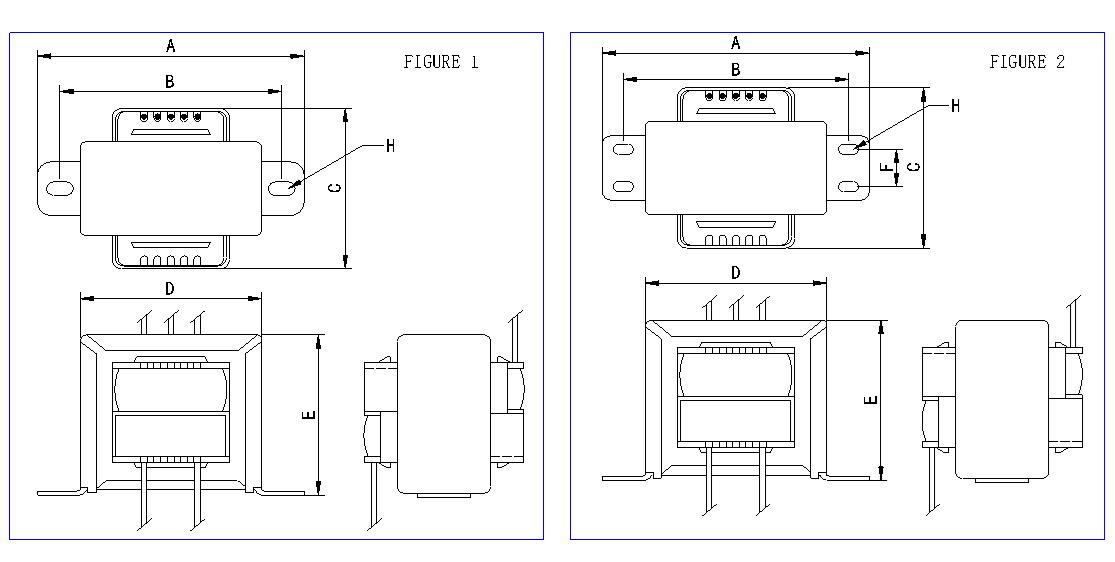

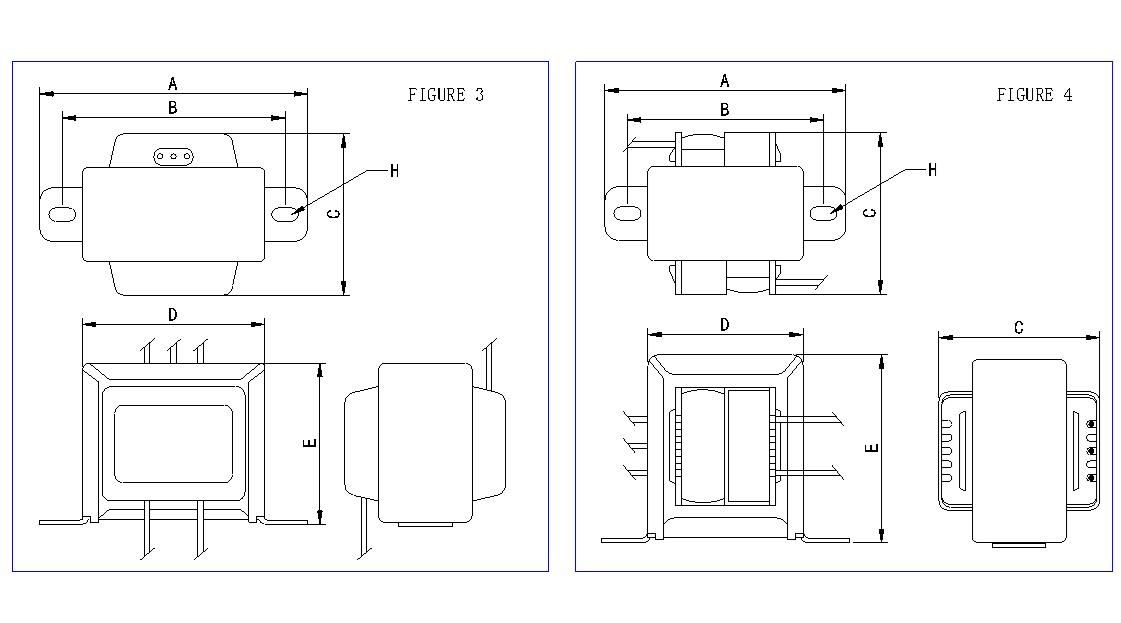

                    NO Max VA A B C D E F SIZE FIGURE
                    1 2.5 55.0 43.0 35.0 29.5 28.0 - EI28 1,3
                    2 4.5 58.0 42.5 38.0 36.5 32.5 - EI35 1,3
                    3 14.0 68.0 55.0 50.0 42.5 35.5 - EI41 1,3
                    4 20.0 76.0 62.5 53.5 50.0 43.0 - EI48 1,3
                    5 35.0 92.0 72.5 62.0 59.0 50.0 - EI57 1,3
                    6 80.0 102.0 78.5 82.0 68.0 58.5 - EI66 1,3
                    7 110.0 115.0 92.5 72.0 78.0 64.5 - EI76 1,3
                    8 150.0 125.0 102.0 100.0 88.0 72.5 - EI86 1,3


                    NO Max VA A B C D E F SIZE FIGURE
                    1 35.0 92.0 72.5 62.0 59.0 50.0 22 EI57 2
                    2 80.0 102.0 79.0 82.0 68.0 58.5 28 EI66 2
                    3 110.0 115.0 92.5 72.0 78.0 64.5 28 EI76 2
                    4 150.0 125.0 102.0 100.0 88.0 72.5 32 EI86 2


                    NO Max VA A B C D E F SIZE FIGURE
                    1 4.5 55.0 43.0 38.0 31.0 37.5 - EI35 4
                    2 14.0 56.0 44.0 50.0 35.0 42.5 - EI41 4
                    3 20.0 70.0 51.0 53.5 42.0 52.0 - EI48 4
                    4 35.0 73.0 60.0 62.0 49.0 60.0 - EI57 4
                    5 90.0 84.0 72.0 82.0 57.0 69.0 - EI66 4
                    6 120.0 95.0 81.0 72.0 65.5 78.5 - EI76 4
                    7 150.0 105.0 89.0 100.0 75.0 89.0 - EI86 4
